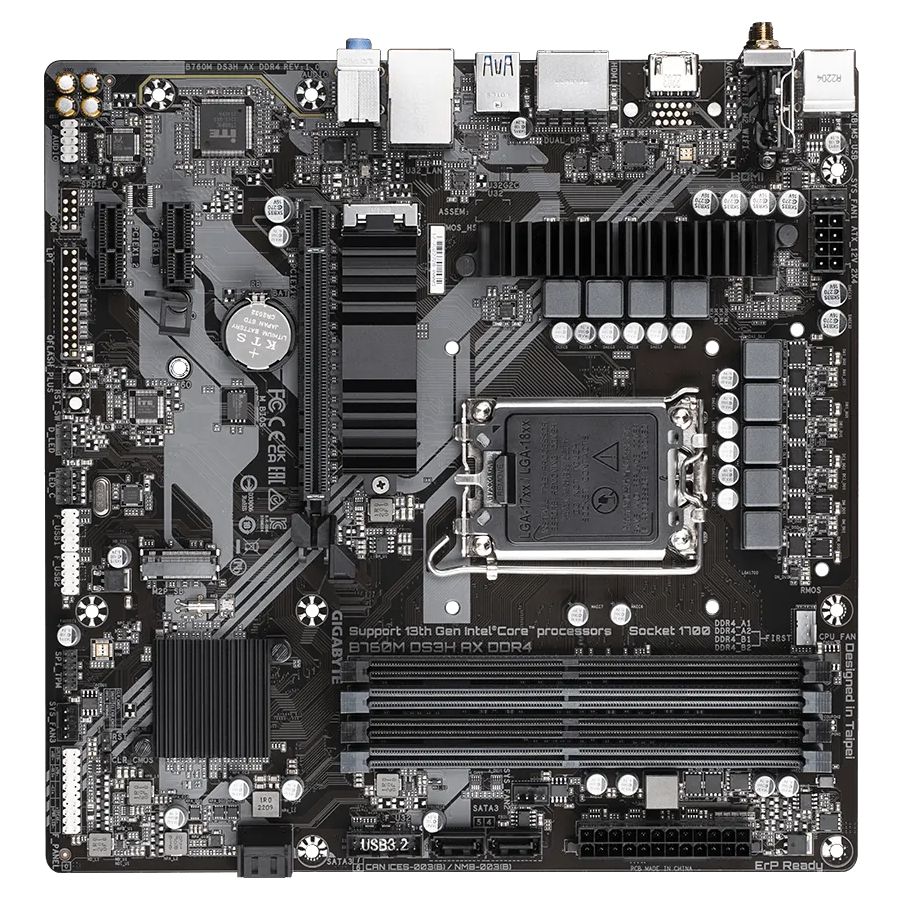

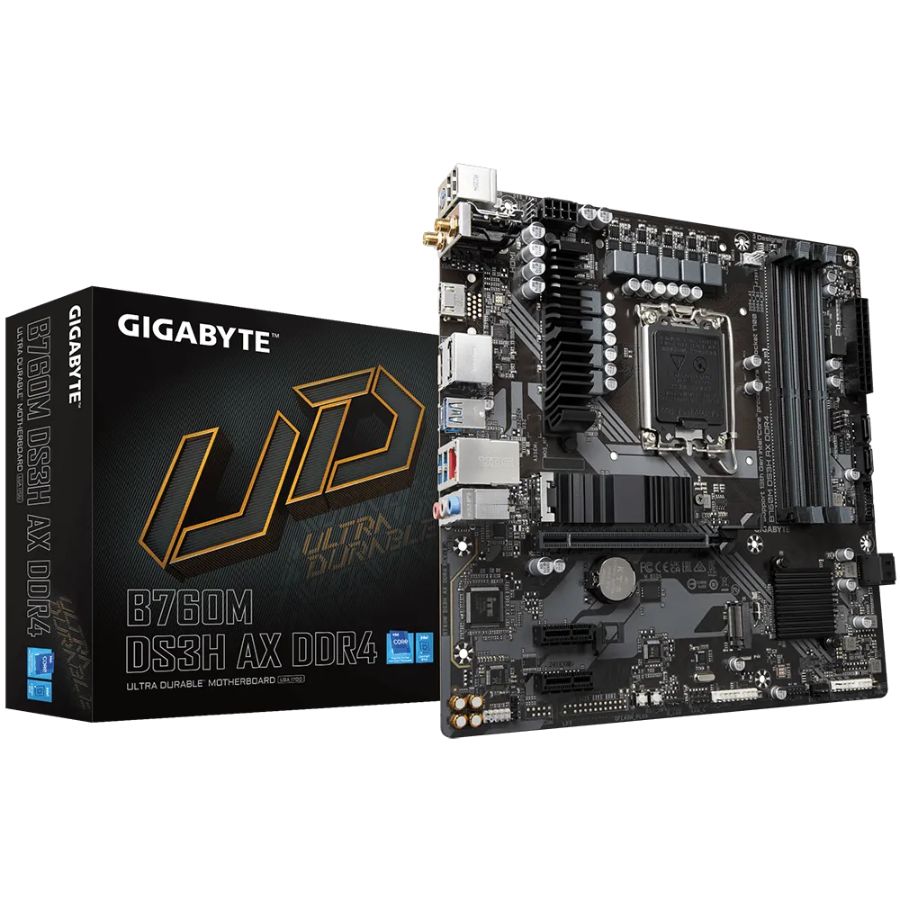

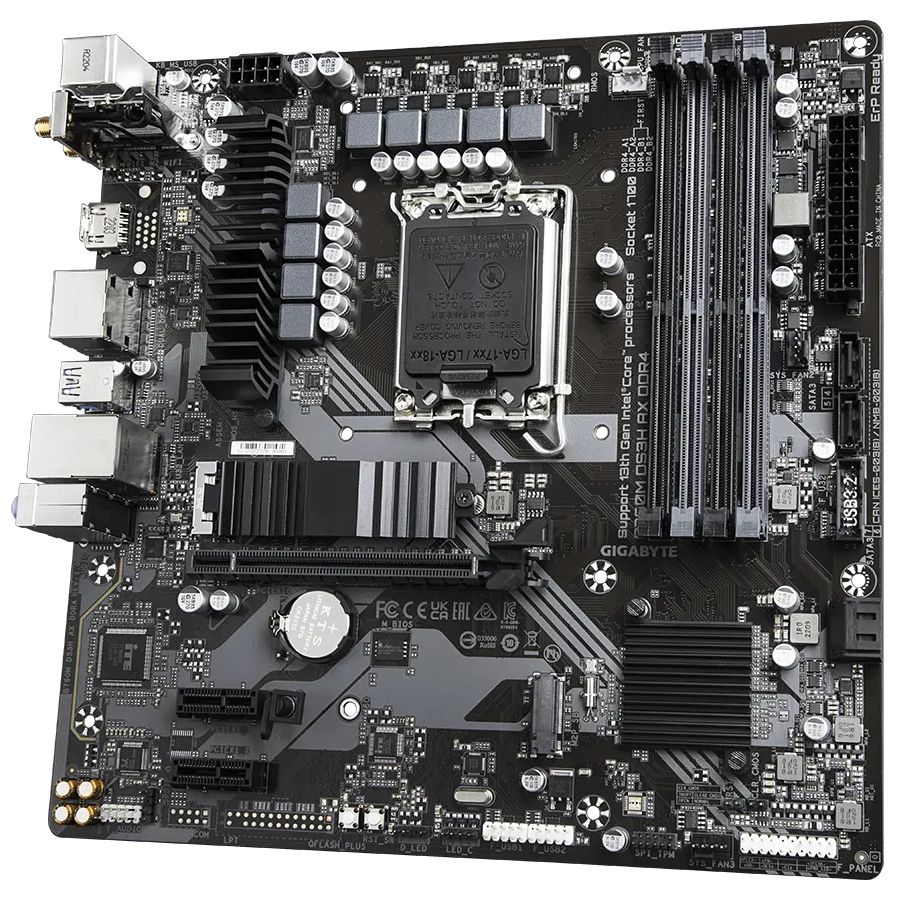

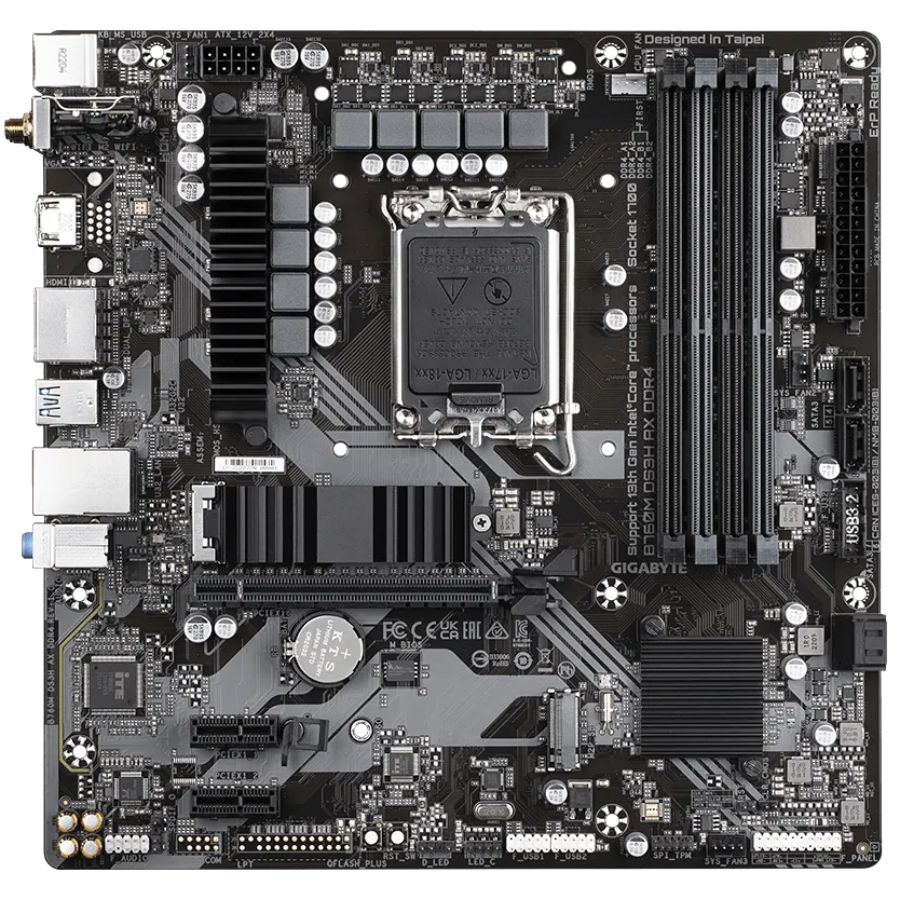

Marca : Gigabyte
Modelo : B760M DS3H AX DDR4
EAN : 4719331850869
UPC : 889523034620
Socket : LGA1700
Chipset : Intel B760 Express
CPU : Compatible con procesadores Intel Core 14ª, 13ª y 12ª generación, Pentium Gold y Celeron
Memoria : 4 x DDR4 DIMM hasta 128 GB, Dual Channel, soporta DDR4 hasta 5333(O.C.), compatible con XMP
PCI-E : 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
D-SUB : No
DVI : No
HDMI : 1 x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3)
DisplayPort : 2 x DisplayPort 1.2 (4096x2304@60Hz, HDCP 2.3)
Sonido : Realtek Audio CODEC, audio HD 7.1 canales, salida óptica S/PDIF
Red : Realtekusb 2.5GbE LAN (2.5G/1G/100M)
PS/2 : 1 (combo teclado/mouse)

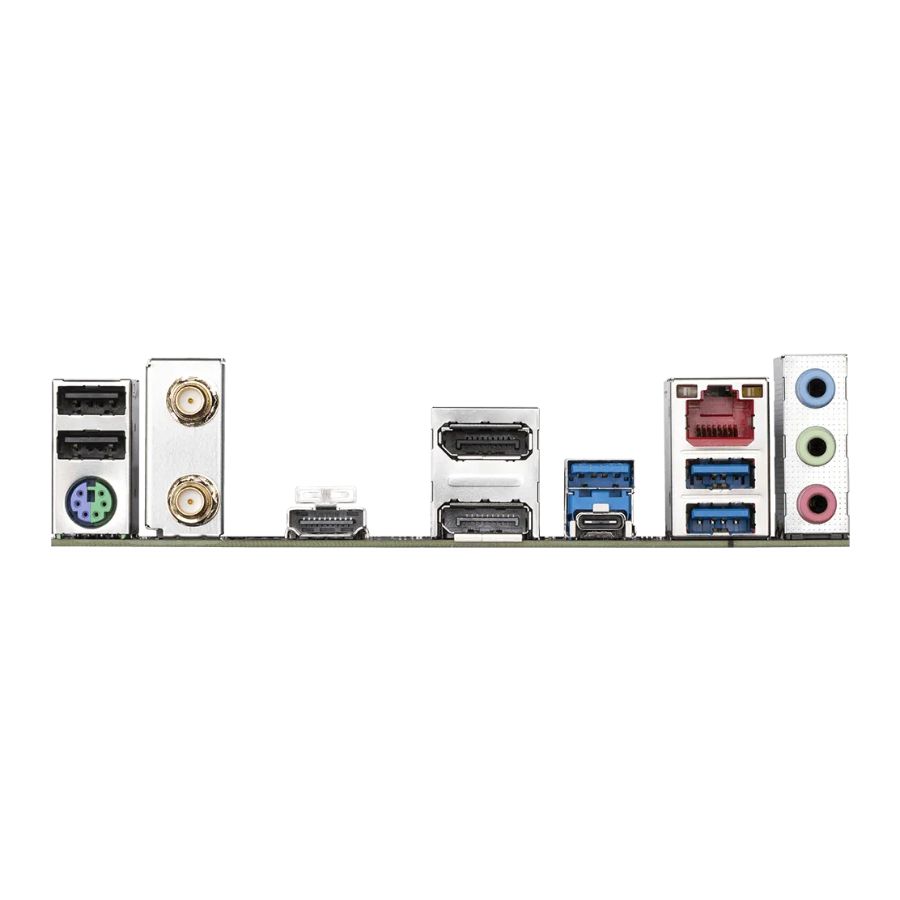

Usb traseros : 1 x USB-C 3.2 Gen2, 3 x USB 3.2 Gen1, 2 x USB 2.0
Usb internos : 1 x USB 3.2 Gen1 header (2 puertos), 2 x USB 2.0 headers (4 puertos)
WiFi : Wi-Fi 6E (según revisión
Bluetooth : 5.2 / 5.3 según revisión
Optica SPDIF : Sí (header interno)
Iluminacion : 1 x header RGB, 1 x header ARGB direccionable
E-SATA : No
LPT : No
COM : No
SATA : 4 x SATA 6Gb/s
M.2 : 2 x M.2 (PCIe 4.0 x4/x2, tipo 2280)
Raid : RAID 0/1/5/10 para unidades SATA
Sistema Back-Connect : No
Formato : Micro ATX
Dimensiones : 24.4 cm x 24.4 cm
